Verify the individual car
This page describes a model, engine or historical subject at archive level. Before using a specification for purchase, valuation or repair, confirm the chassis identity, production date, market version and installed parts of the individual car. Previous repairs and conversions can change what is present. Use the linked factory material for exact procedures and record measurements and observations rather than relying on appearance alone.
Read the circuit before touching it
Identify power source, fuse, switch or relay, consumer and ground on the correct model-year diagram. Then confirm where voltage is present under load. Continuity on an unloaded wire can look perfect even when corrosion prevents useful current.
Grounds are measured, not assumed
A connection can look clean and still drop voltage. Measure between the consumer ground and battery negative while the circuit operates. Clean the correct point, protect it and retest. Adding random extra earth wires can mask the original fault and create future confusion.
SI board and ageing electronics
Failed rechargeable batteries on the service-indicator board can produce erratic instruments and board damage. Inspect rather than repeatedly resetting the display. Check Control faults also require circuit testing: the warning panel reports what it sees, but the cause may be a sensor, connector, lamp specification or supply.
Sources and reference material
Use the factory information for the exact model, build date and equipment before safety-critical work.

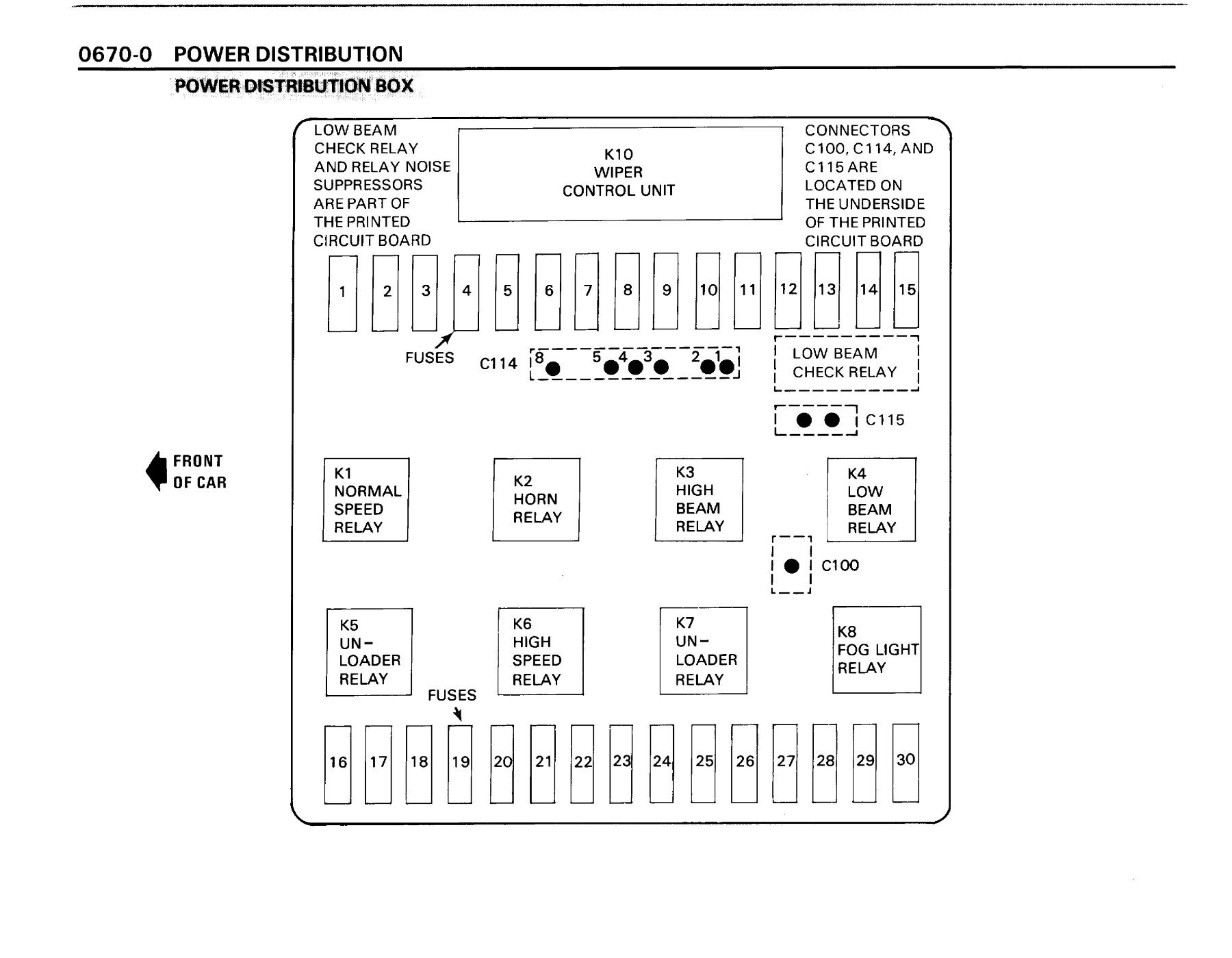

- 1990 BMW M3 Electrical Troubleshooting Manual Use the diagram matching the exact model year and equipment.
